Home > Active (Magnetic) Antenna ISD 715

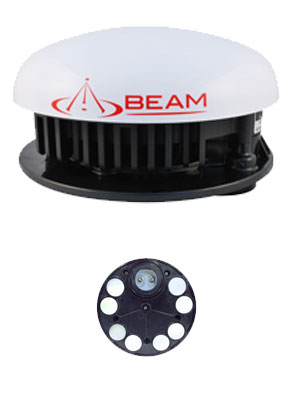

Active (Magnetic) Antenna ISD 715
With the Magnetic mount, the antenna is very easy to install and move from asset to asset and doesn’t require any holes to be drilled for fitting. Antenna cable connection is protected from the environment with its outer enclosure.
$
1,743.50
Features
- High quality enclosure
- Active antenna
- Temp Range: -40°to +70°C / IEC 60945 marine specification: -25°C to +55°C
- Magnetic mounting
- SMA / SMA
- White
- Low profile
- Omni Directional
- Dimensions
- 75 x 146 x 146mm
- 2.95 x 5.75 x 5.75inch
- Weight
- 0.87kg
- 1.92lbs
- Power
- Power supplied by IsatDock. No additional power required
Specifications
- Equipment Type: Mobile or Fixed Base Station
- Intended Operating Environment: [ x ] Commercial [ x ] Light Industry & Heavy Industry
- RF Output Impedance: 50 Ohms
Frequency
- Inmarsat Receive (extended) 1518.0 to 1525.0 MHz
- Inmarsat Receive (operational) 1525.0 to 1559.0 MHz 1575.42 ± 10.25 MHz (GPS L1)
- Inmarsat Transmit (operational) 1626.5 to 1660.5 MHz
- Inmarsat Transmit (extended) 1668.0 to 1675.0 MHz
Axial Ratio
- Antenna Description Type
