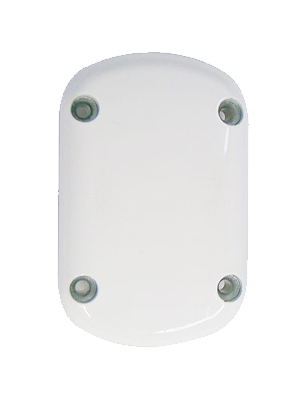

Antenna Dual Mode RST703
Beam RST703 dual mode Iridium & GPS patch antenna, designed predominantly for land and asset monitoring applications. The RST703 dual mode patch antenna is supplied complete with bulkhead mount that enables it to be securely mounted without the connectors being exposed to the environment.
Beam RST703 dual mode patch antenna is fitted with an SMA female connector for GPS and a TNC for Iridium and will work with all Beam tracking products or other Iridium / GPS based devices.
Features
- Iridium approved
- Designed for harsh environments
- Small and lightweight
- Weatherable polymer
- Manufactured in the USA
- 12 Month warranty
Specifications
Frequency - 1621 +/- 5MHz
1575 +/- 5MHz
Polarization - Right Hand Circular
Axial Ratio - 3db Max
Amplifier Noise Figure - 2.5db Max
Impedance - 50 OHMS
VSWR - < 2.0 : 1
Power handling - 10 Watts
Finish - Weatherable Polymer
Weight - 4.5oz or .28lb Max
Altitude - 20,000’
Connector - TNC / SMA
Colour - White
Operating Temp - Celsius -55° to +85° or Fahrenheit -67° to 185°
